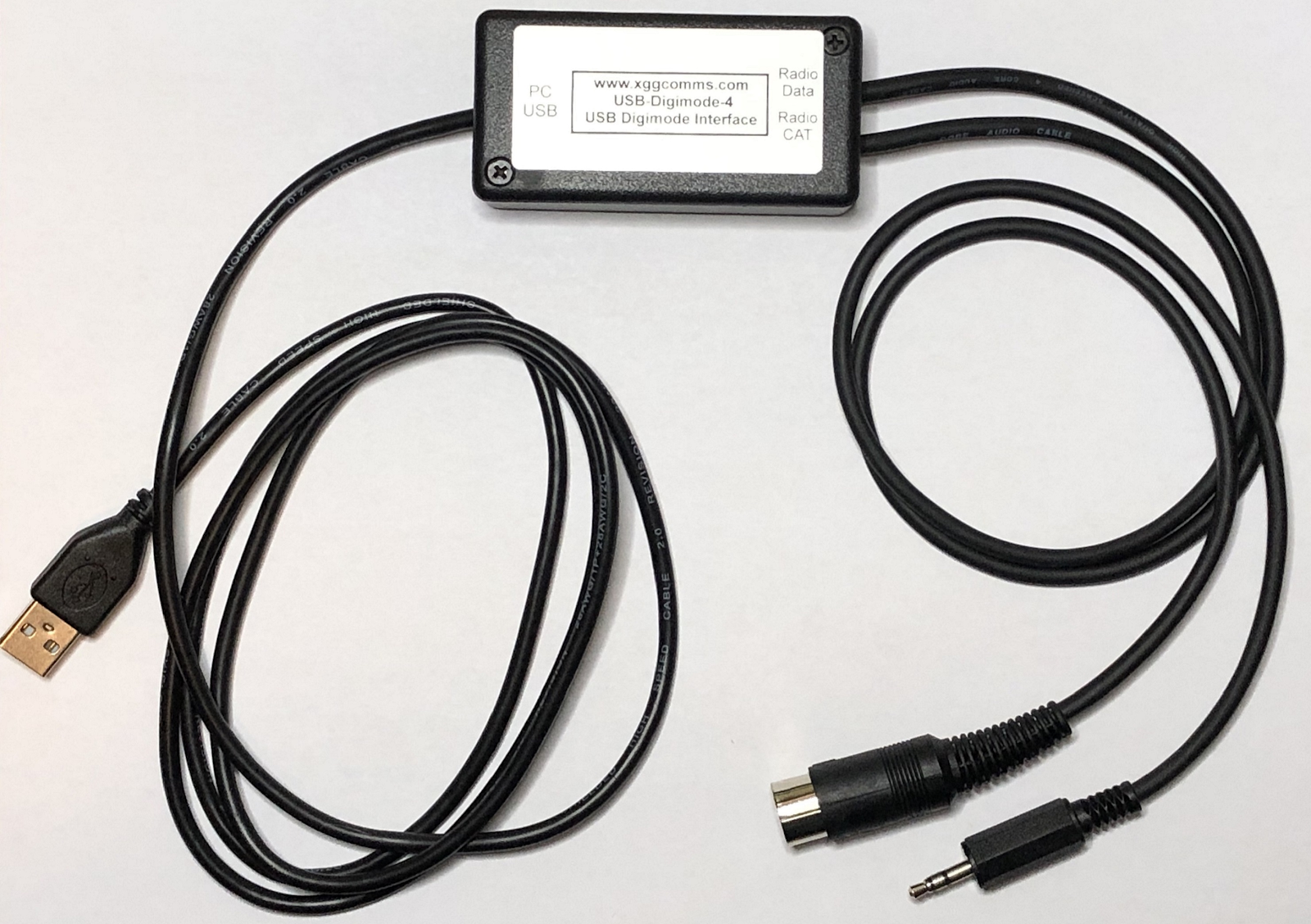

Xiegu G90/Windows Setup for WSJTX w-XGGComms USB Digimode-4

Radio Settings

      1.      HEADPHONES: On (Short Press the Volume Button [VOL])
2.      AGC: - - Off
3.      PREAMP: Off
4.      MODE: USB
5.      MIC GAIN: Line (Short press Function Button [FUNC]. Press the Power Button [POW] twice. Use the Tuning Control to select LINE. Short press the Power Button [POW] to exit. Short press Function Button [FUNC]).
6.      AUX IN: (Long press the Function Button [FUNC]. Press Next Button [VM] to get to menu #5. Use the Tuning Control to set to 10.)
7.      AUX OUT:   Set the AUX Out Volume to 12 (Press Next Button [VM] to get to menu #6. Use the Tuning Control to set to 12. Press the Save Button [CMP]).
8.      POWER: 18 Watts (Press the Power Button [POW]. Use the Tuning Control to set to 18W. Press the Power Button [POW] twice.

FLRIG Settings

RIG: Xiegu G90
COM PORT: 10 (of course yours will likely be different)
BAUD RATE: 19200
STOP BITS:2
PTT: via CAT (also uncheck RTS or DTR in PTT Menu)

WSTJ-X Settings

RIG: FLRIG FLRIG
PTT: None
MODE: None
SPLIT: None
DATA BITS: 8
STOP BITS: 2
AUDIO IN: Microphone (USB Audio Device)
AUDIO OUT: Speakers (USB Audio Device)
